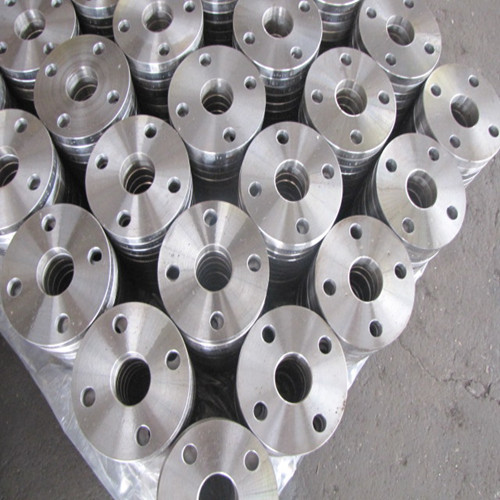

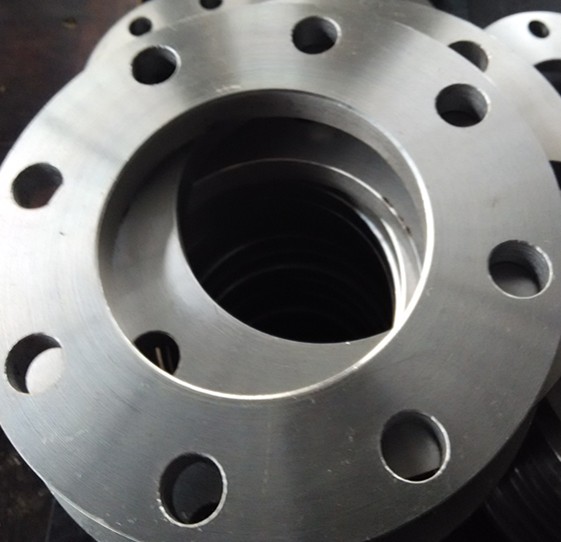

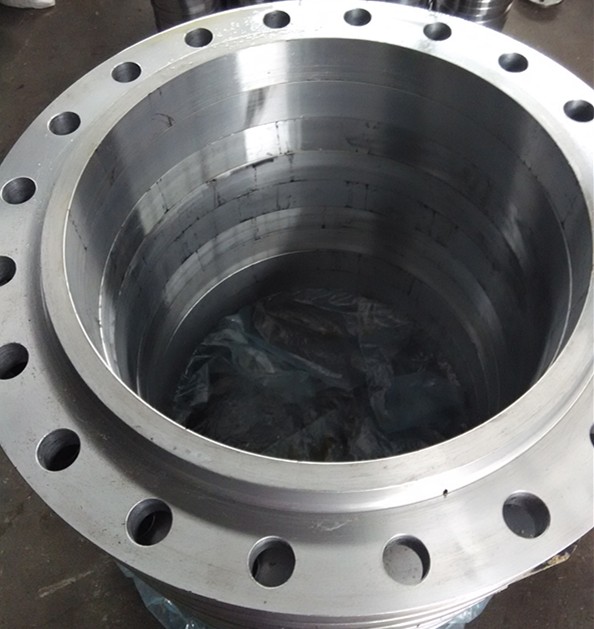

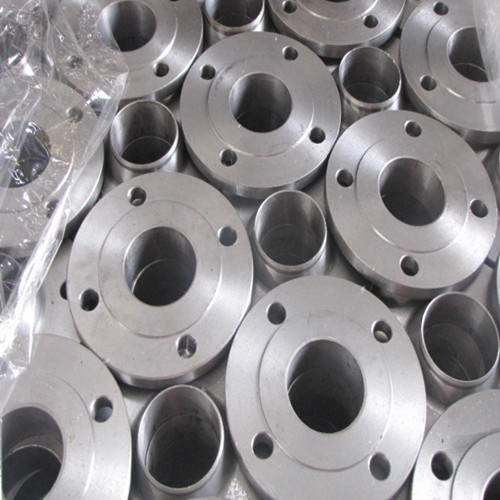

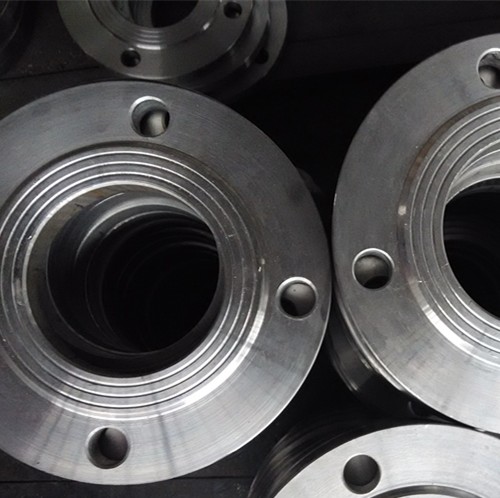

Stainless Steel Forging Flanges with ANSI
Basic Info
Model No.: DN10-DN800
Additional Info
Packaging: wooden cases or pallet
Productivity: 500tons/per month
Brand: Jimeng group
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 500tons/per month
Certificate: ISO 9001 :2008
Product Description
|
FLANGES |
|
|
Material |
Carbon steel:ASTM A105,ASTM A350 LF1,LF2,CL1/CL2,A234,Q235A,A106B |
|
Stainless steel:ASTM A182 F304/304L,F316/316L,904L |
|
|
Standard |
EN, DIN, UNI, BS, NF, ANSI, JIS, KS, API, MSS |
|
DIN:DIN2527,DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, |
|
|
ANSI:ANSI B16.5,ANSI B16.47,MSS SP44,ANSI B16.36,ANSI B16.48 |
|
|
BS:BS4504, BS1560, BS10 |
|
|
UNI: 2276 2277 2278 6084 6089 6090 2544 2282 6091-6093 |
|
|
JIS: SS400 SF440 |
|
|
Surface |
Rust-proof oil, Black, Yellow, Galvanized |
|
Type |
plate, threaded, slip-on, socket welding, lap joint, blind, welding neck,Or produce specifically according to pictures/ drawings |
|
Size |
DN10-DN2000 |
|
Pressure |
ANSI:150bls-2500bls |
|
DIN/EN/UNI:PN6-PN40 |
|
|
JIS:10K,16K,20K,30K |
|
|
Connection |
Welding,Threaded |
|
Technics |
Forged,Casting |
|
Package |
Wooden case,Cartons,Pallets or crates according to buyer's requirements. |
|
Delivery date |
as per order quantity |
|
Applications |
Steam, air, gas and oil pipes or for many other fluids |
